Network Security & Connectivity Controls

Azure networking involves multiple overlapping controls (NSGs, UDRs, DNS, peering). Misunderstanding rule priority or DNS resolution causes connectivity failures that are difficult to troubleshoot without systematic testing.

Multi-subnet VNets with NSGs at subnet and NIC level. Public and Private DNS zones with VNet linking. Standard Load Balancer with backend pools and health probes. Network Watcher for connectivity validation.

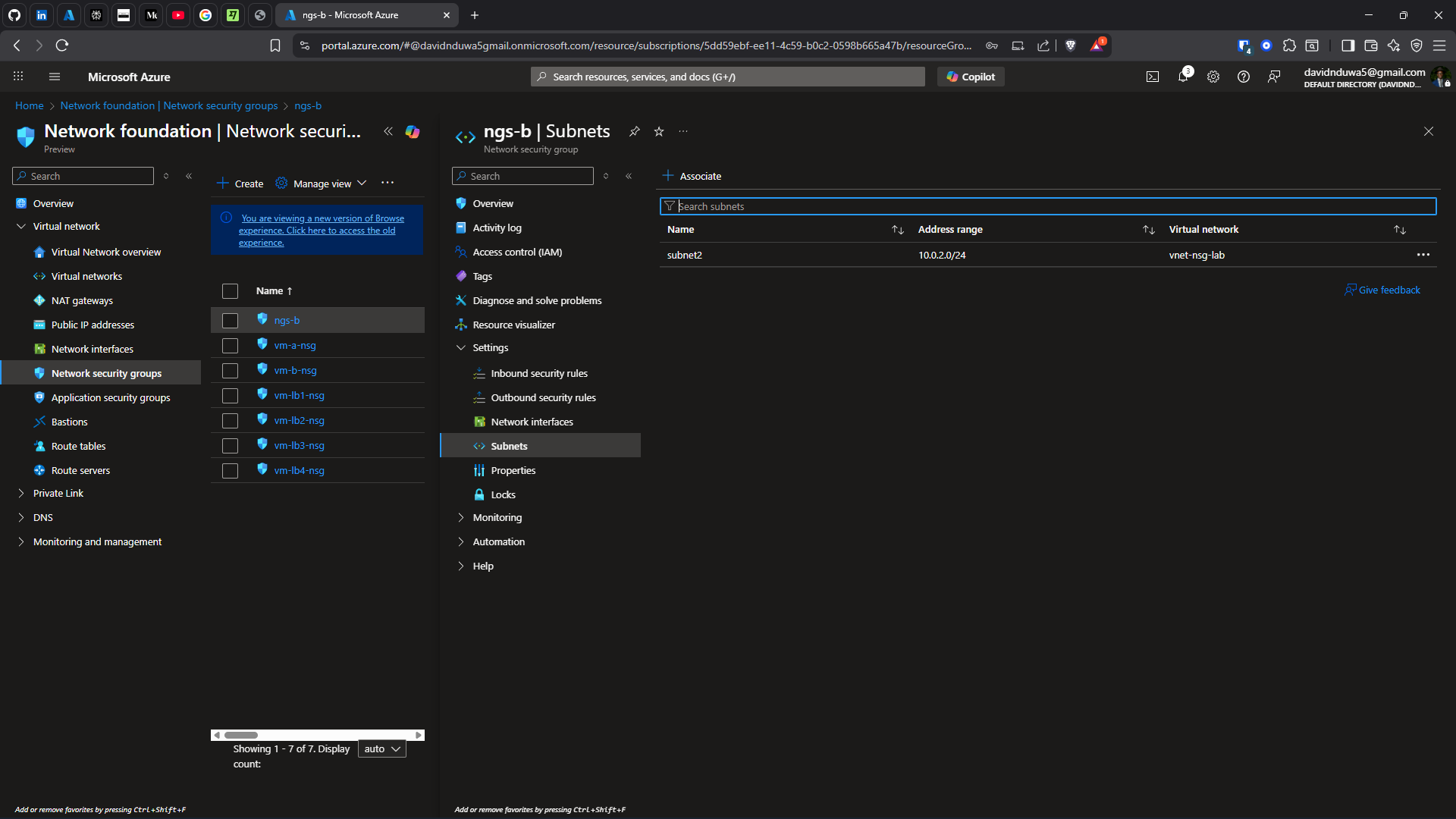

Nsg B Association

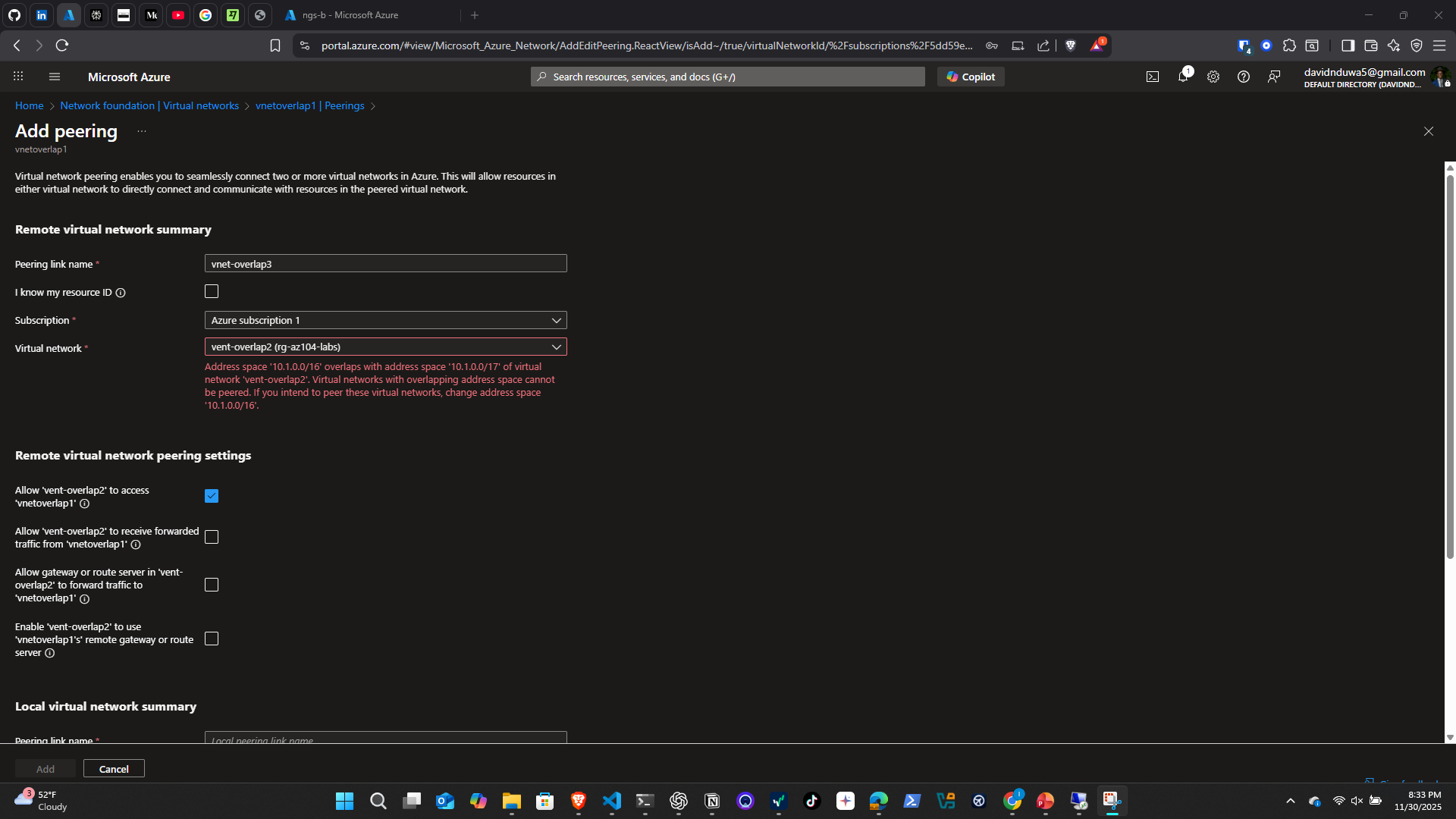

Overlaping Deny

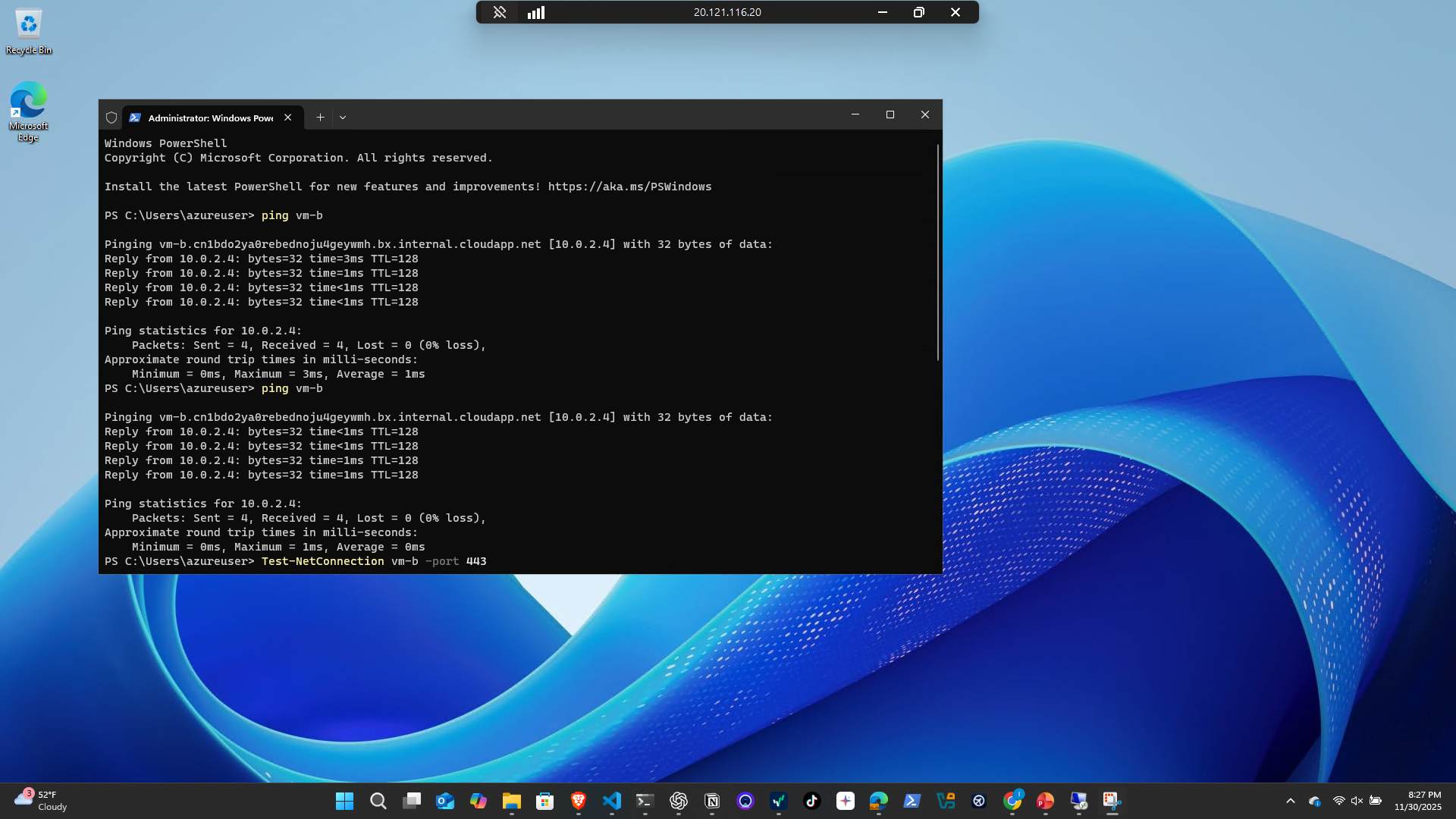

Ping

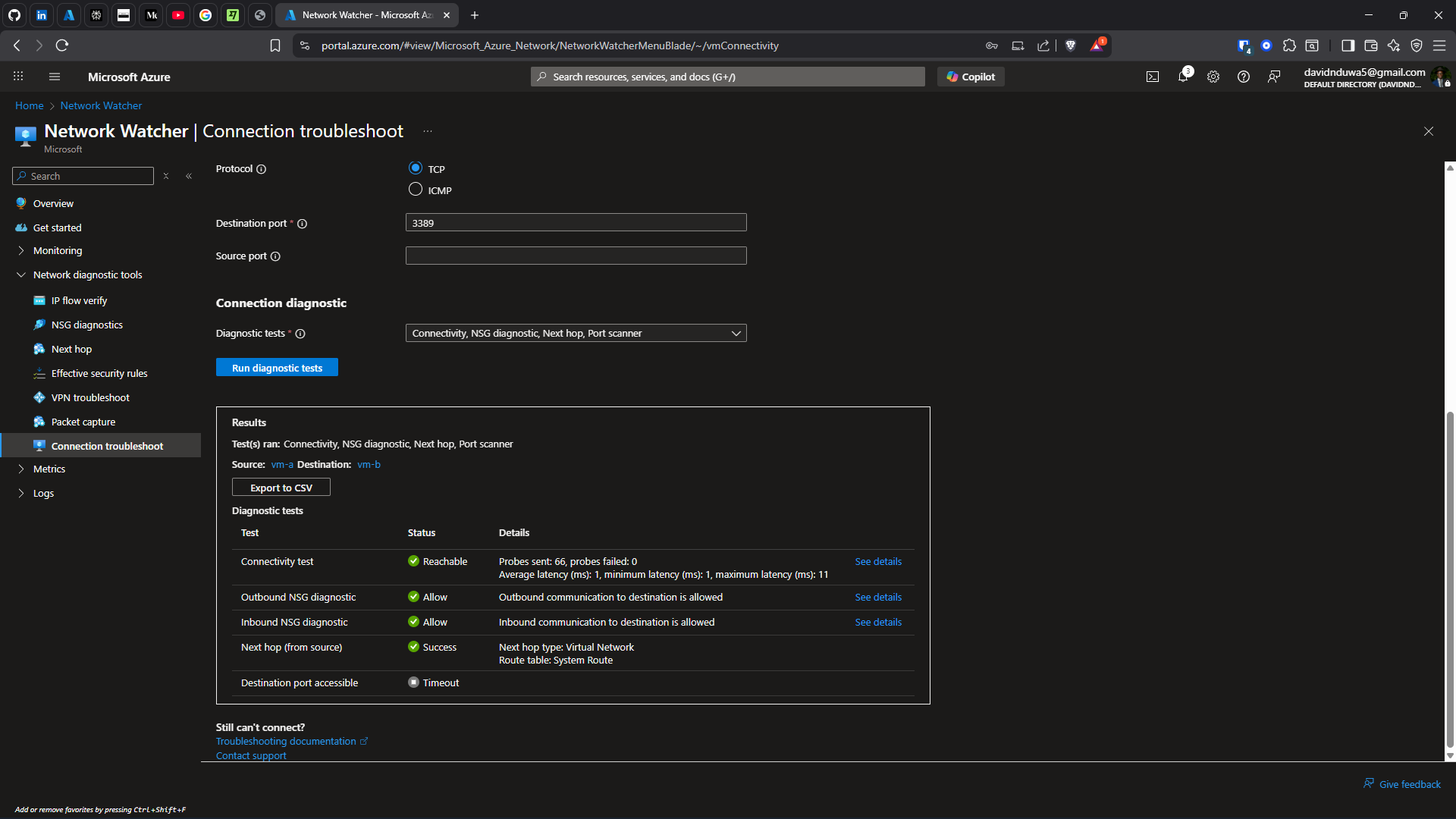

Tcp

• NSG rule priority testing (Allow vs Deny precedence across 5+ scenarios)
• VNet peering: overlap vs non-overlap testing with CIDR validation
• Standard Load Balancer with backend pool and health probes
• Public DNS zone with NS/SOA records for external resolution
• Private DNS zone with A records and VNet links for internal resolution
• Network Watcher connectivity checks and IP flow verify

Diagram

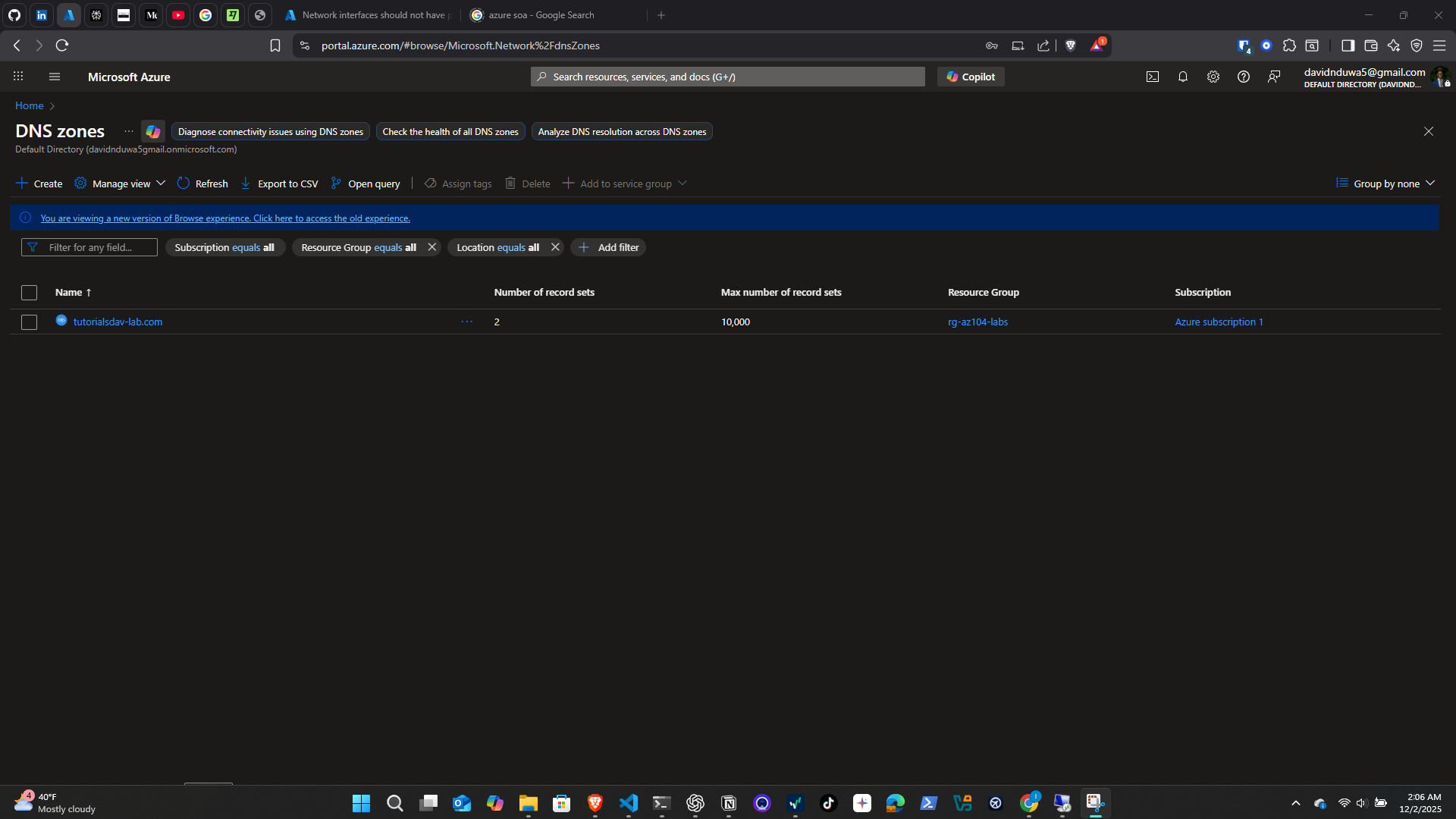

Public Dns Zone Overview

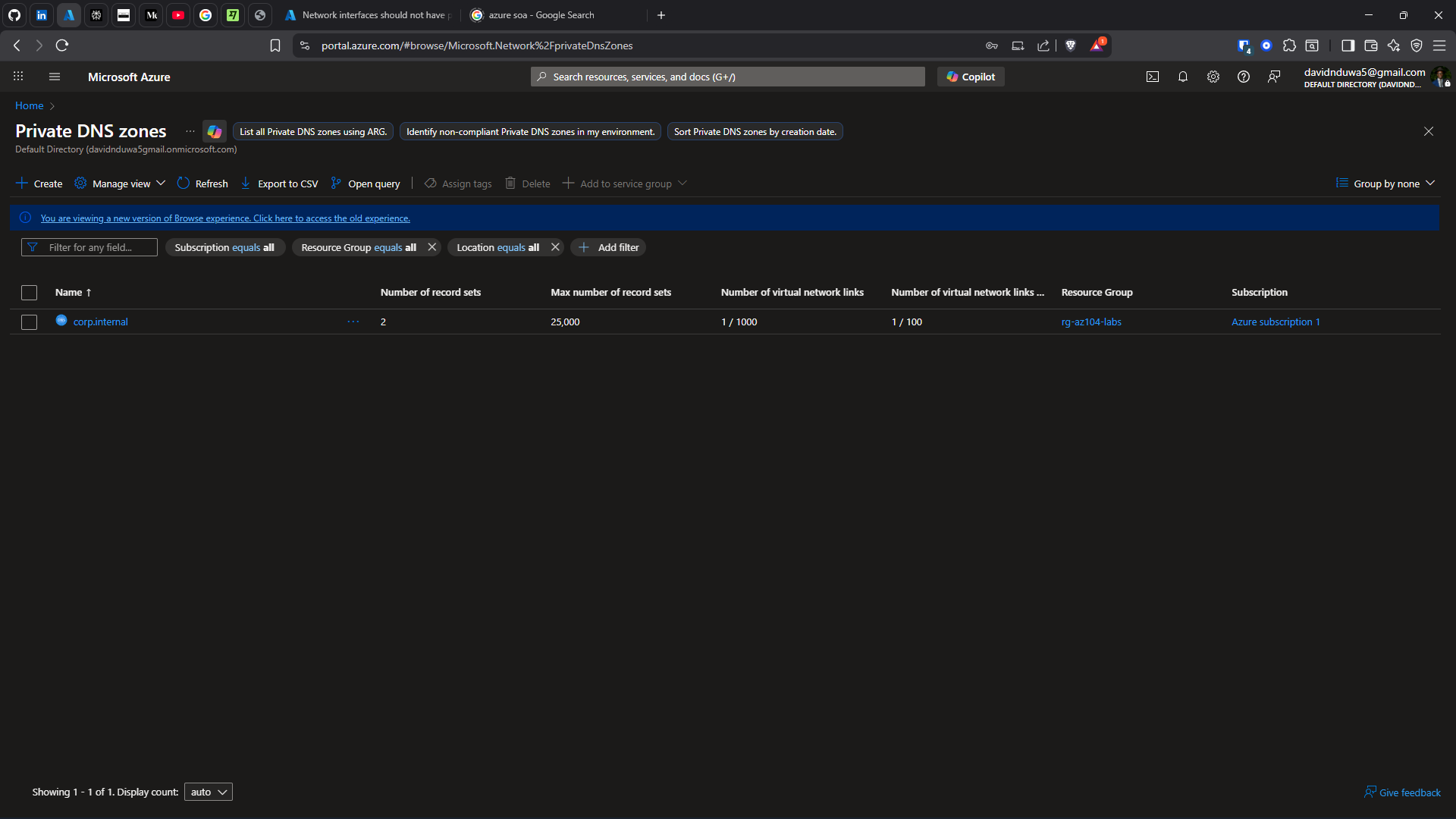

Private Dns Zone

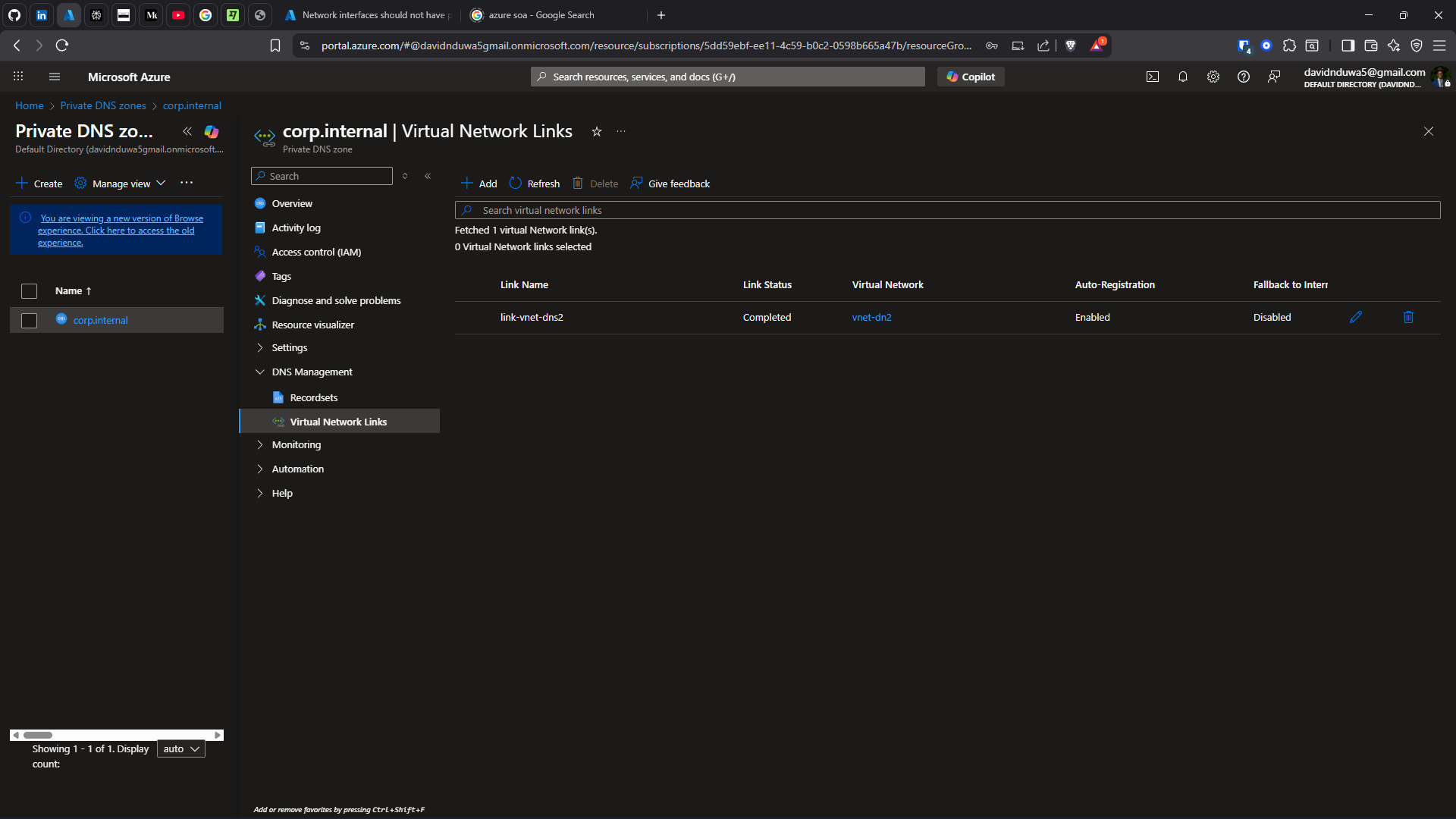

Vnet Links

• NSG priority confirmed: lower number wins (deny at 100 beats allow at 200)
• CIDR overlap constraints identified during peering setup
• Backend pool routing verified with health probe monitoring
• nslookup from VM resolved private DNS records successfully
• Public DNS records resolving externally
• Test-Connection confirmed port-specific TCP access

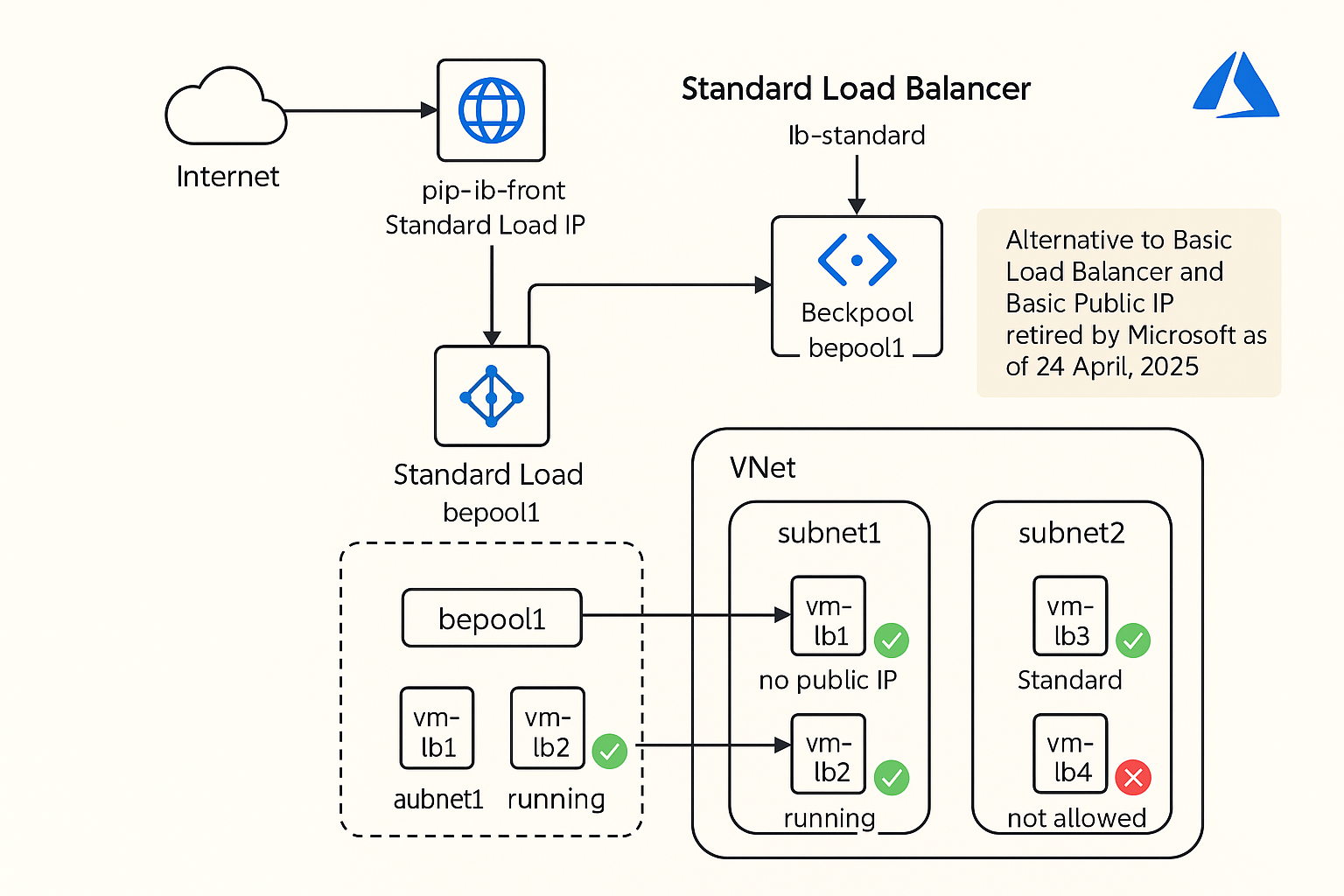

Lab 1 Diagram

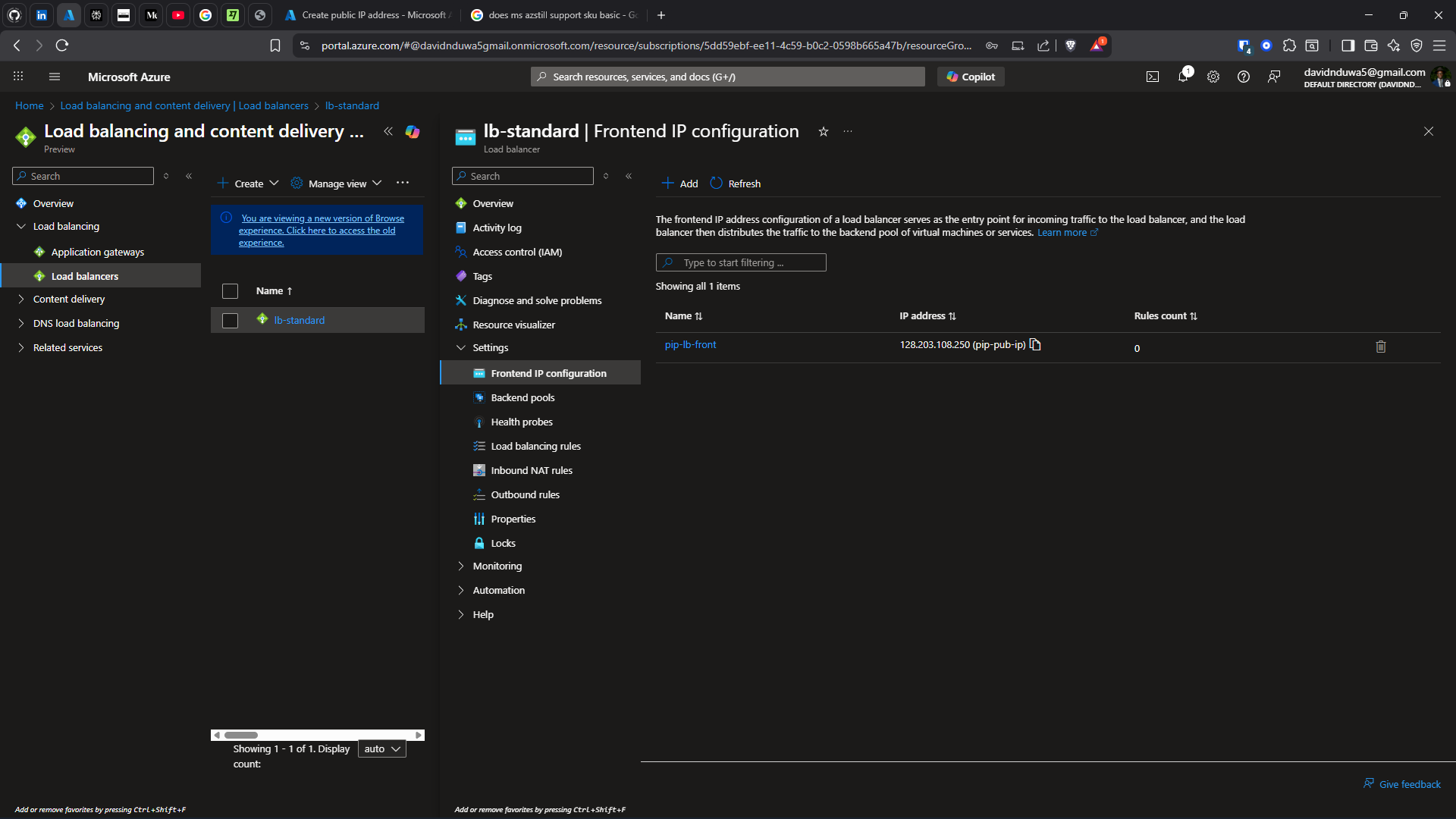

Frontend Ip

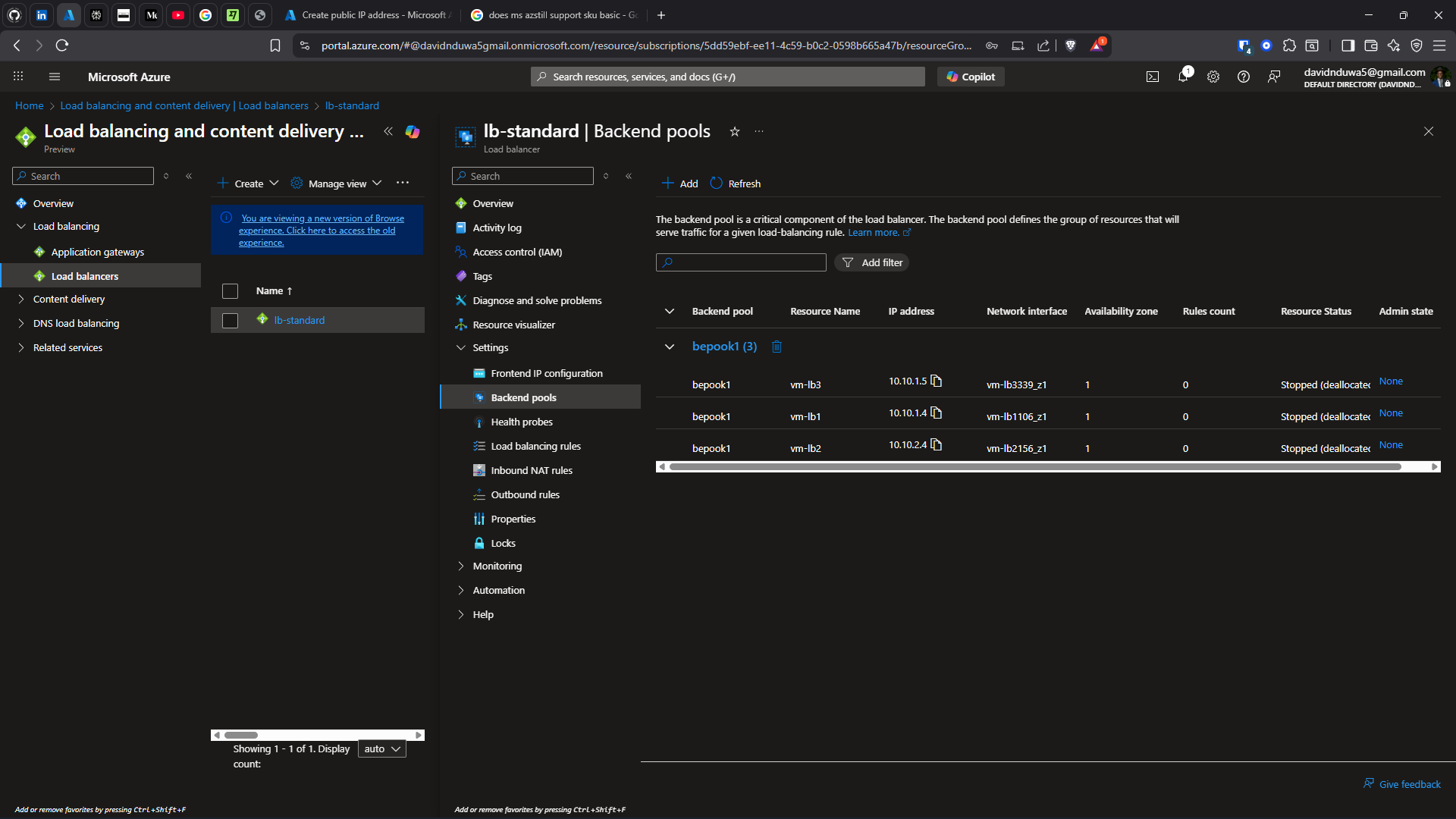

Backednpool

• Validated rule precedence across 5+ test scenarios
• Identified CIDR overlap constraints preventing peering
• Confirmed backend pool routing functionality end-to-end
• DNS resolution validated for both public and private zones

• Blocked required NSG port → validated deny precedence
• Overlapping CIDR ranges → peering creation blocked
• Removed VNet link from Private DNS → internal resolution failed
• Stopped backend VM → health probe removed from rotation
• Created Private Endpoint without DNS Zone link → connection failed despite NSG allow

• In production: use Application Security Groups for rule management at scale
• Implement NSG flow logs for continuous traffic analysis
• Use Azure DNS Private Resolver for hybrid DNS scenarios
• Standard LB requires explicit outbound rules (no default SNAT)
• Network Watcher should be enabled in every active region

• Always check effective routes and effective security rules before troubleshooting
• DNS resolution failures are the #1 cause of Private Endpoint issues
• NSG evaluation: platform rules → deny → allow → default deny
• Standard LB is zone-redundant by default; Basic is not

Established systematic network testing methodology applicable to any Azure environment. Demonstrated ability to troubleshoot complex multi-layer connectivity issues.
